FALCON ROUND

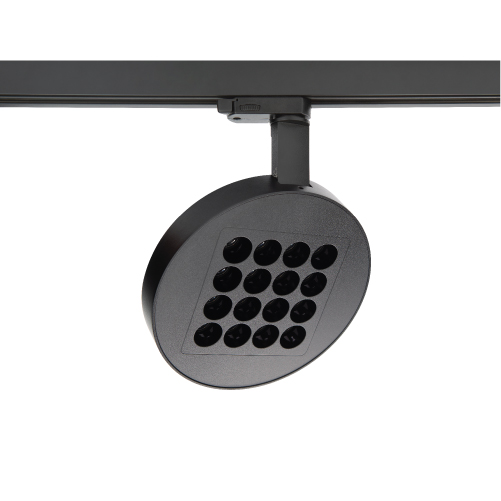

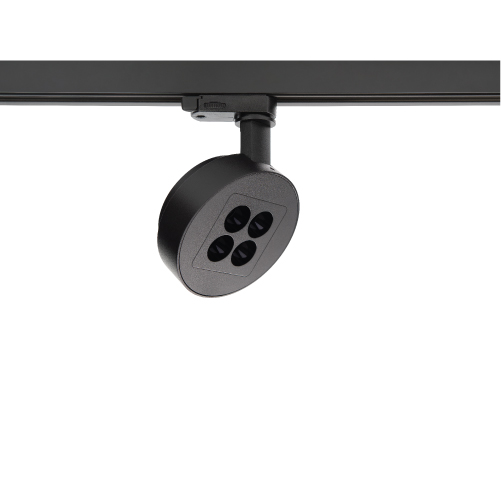

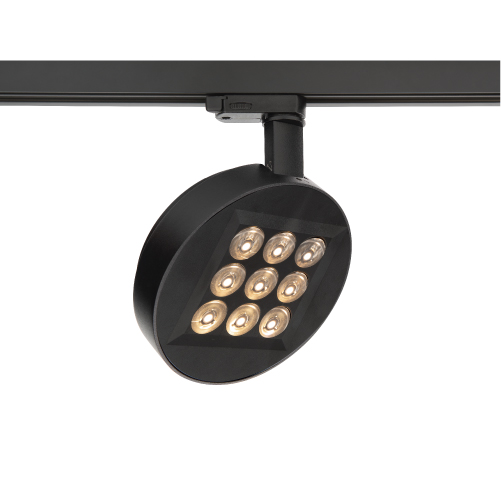

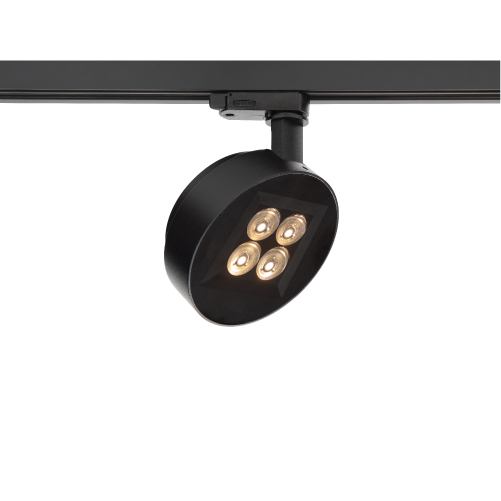

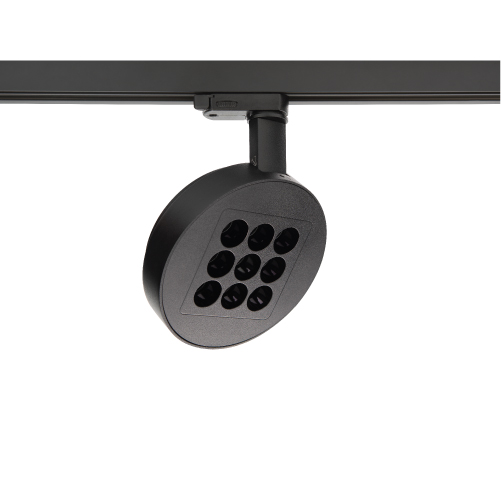

FALCON Round Spot

ATL71SA/TL72S/ATL73S
Part of the distinguished WAC Museum Collection, FALCON Round Spot is an integrated LED luminaire engineered for demanding, precision-driven environments. Its patented SUBROSA® optical system delivers a disciplined 30-degree shielding angle within a slim architectural profile, ensuring exceptional glare control and visual comfort. The proprietary W-Module optical platform, paired with advanced LED technology, offers a broad range of controlled light distributions to address complex display and architectural requirements. FALCON Round Spot balances refined form with powerful performance for spaces where accuracy, flexibility, and restraint are essential.

Features

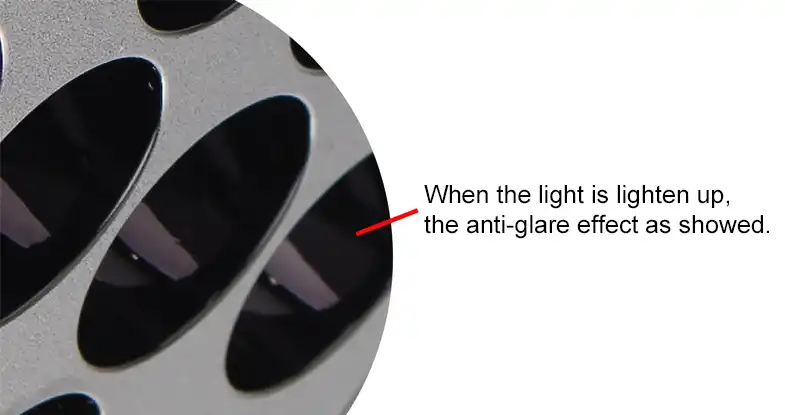

Industry First, SUBROSA Invisible Light Technology

Industry First, SUBROSA Invisible Light Technology

WAC LIGHTING has the industry's first SUBROSA technology. Accurately calculating and controlling light, deep anti-glare, greatly improving the light experience.

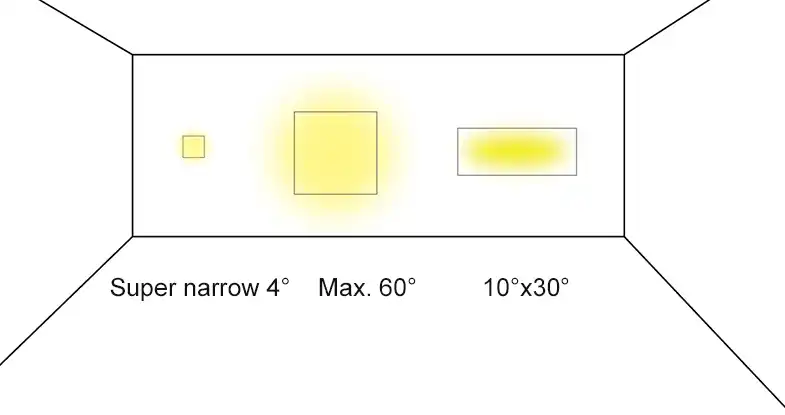

Multiple options of beam angle, tailor-made for different sizes of exhibits.

Multiple options of beam angle, tailor-made for different sizes of exhibits.

Ultra-narrow beam angle of 4°, up to 60°. Elliptical light distribution and wall-washing light distribution, ""tailored"" for different sizes of exhibits. Excellent stray light control, light and shadow flow, don't take over the host's place, make the details to the extreme.

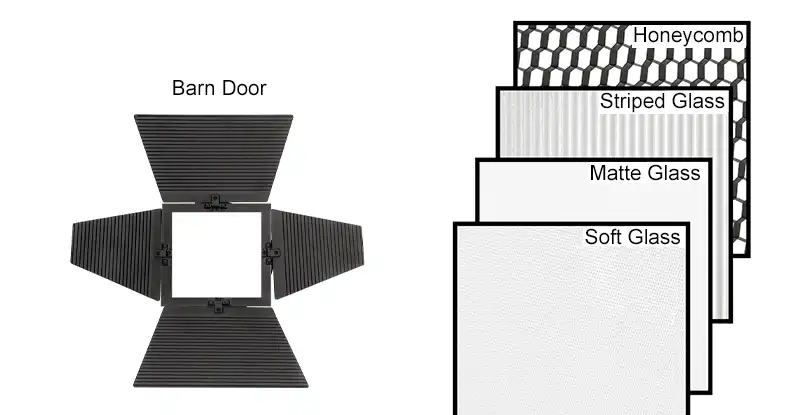

Multiple options of light distribution accessories to choose

Multiple options of light distribution accessories to choose

Specifications

Model

LED

Dimming

Beam

CRI

CCT

Finish

ATL71S

FALCON ROUND

LD03  LED 3W

O  On-boarding

D  0-10V Dimming

B  Wireless

A  DALI

V    4°

9  90

A  97

30  3000K

40   4000K

WT  White

BK  Black

Model

LED

Dimming

Beam

CRI

CCT

Finish

ATL71S

FALCON ROUND

LD08 LED 8W

LD12  LED 12W

O  On-boarding

D  0-10V Dimming

B  Wireless

A  DALI

S   7°

1   14°

2   20°

3   30°

4   40°

G  20*55°

E  10*30°

9  90

A  97

30  3000K

40   4000K

WT  White

BK  Black

Model

LED

Dimming

Beam

CRI

CCT

Finish

ATL72S

FALCON ROUND

LD12  LED 12W

O  On-boarding

D  0-10V Dimming

B  Wireless

A  DALI

V    4°

9  90

A  97

30  3000K

40   4000K

WT  White

BK  Black

Model

LED

Dimming

Beam

CRI

CCT

Finish

ATL72S

FALCON ROUND

LD18  LED 18W

LD27  LED 27W

O  On-boarding

D  0-10V Dimming

B  Wireless

A  DALI

S   7°

1   14°

2   20°

3   30°

4   40°

G  20*55°

E  10*30°

9  90

A  97

30  3000K

40  4000K

WT  White

BK  Black

Model

LED

Dimming

Beam

CRI

CCT

Finish

ATL73S

FALCON ROUND

LD27  LED 27W

O  On-boarding

D  0-10V Dimming

B  Wireless

A  DALI

V  4°

9  90

A  97

30  3000K

40  4000K

WT  White

BK  Black

Model

LED

Dimming

Beam

CRI

CCT

Finish

ATL73S

FALCON ROUND

LD32  LED 32W

LD43  LED 43W

O  On-boarding

D  0-10V Dimming

B  Wireless

A  DALI

S   7°

1  14°

2  20°

3  30°

4  40°

G  20*55°

E  10*30°

9  90

A  97

30  3000K

40  4000K

WT  White

BK  Black

Sample：ATL73SLD32-O2930WT
