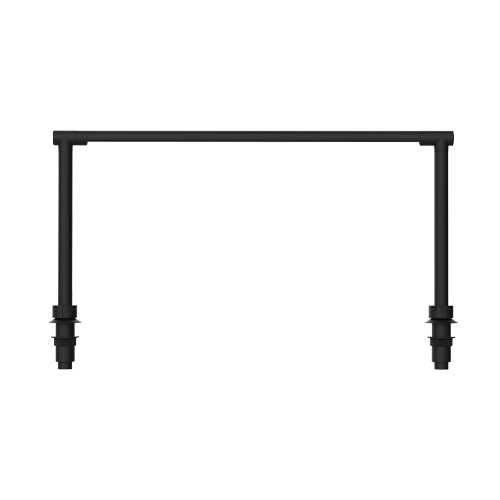

ASLP1/ASLP2 / LEDme Bar Showcase Light
A linear tool for task and display. LEDme BAR is constructed from extruded aluminum profiles and offered in multiple lengths and configurations to match workbench and cabinetry scales. Height and directional adjustability support precise placement, while compatibility with various dimming methods expands application flexibility. Designed for seamless on-site splicing and clean integration, LEDme BAR brings refined detailing to high-performance undercabinet and display environments.
Features

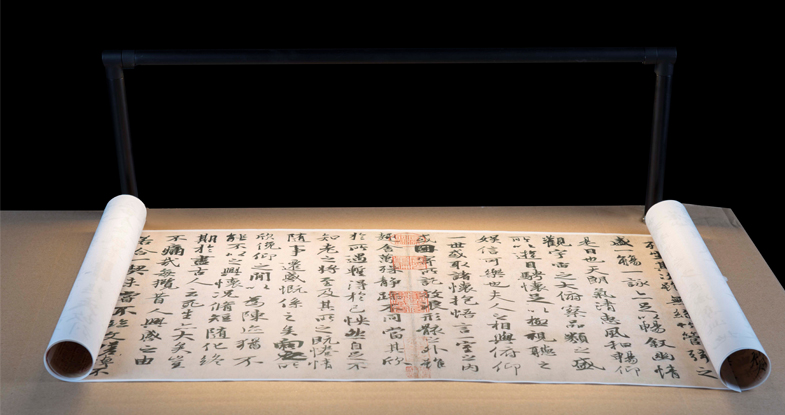

Let the light in the limited space to get infinite extension
LiteBox Wall Washer System

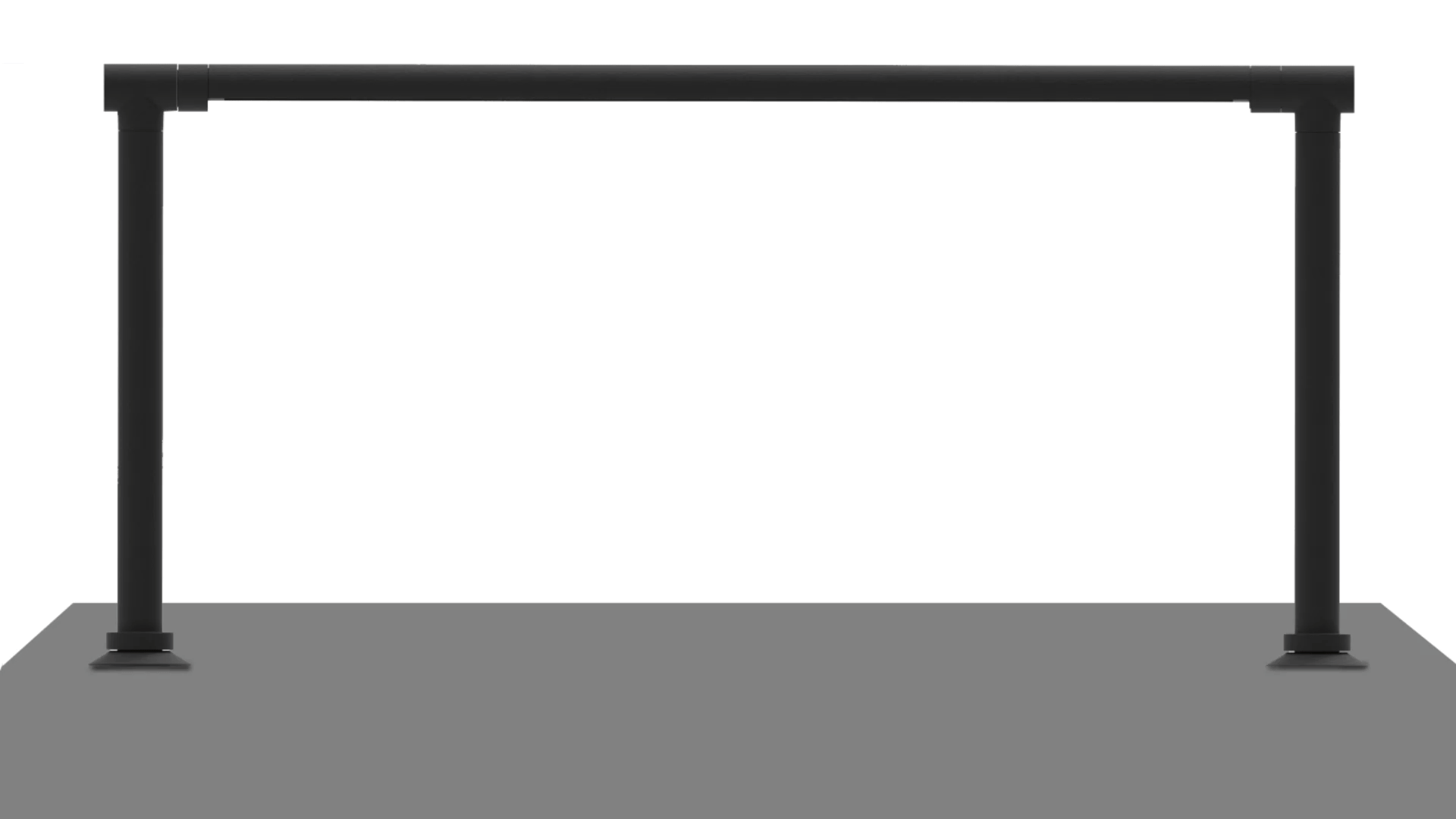

Light body rotation
0°~60° adjustment around the axis of the light body

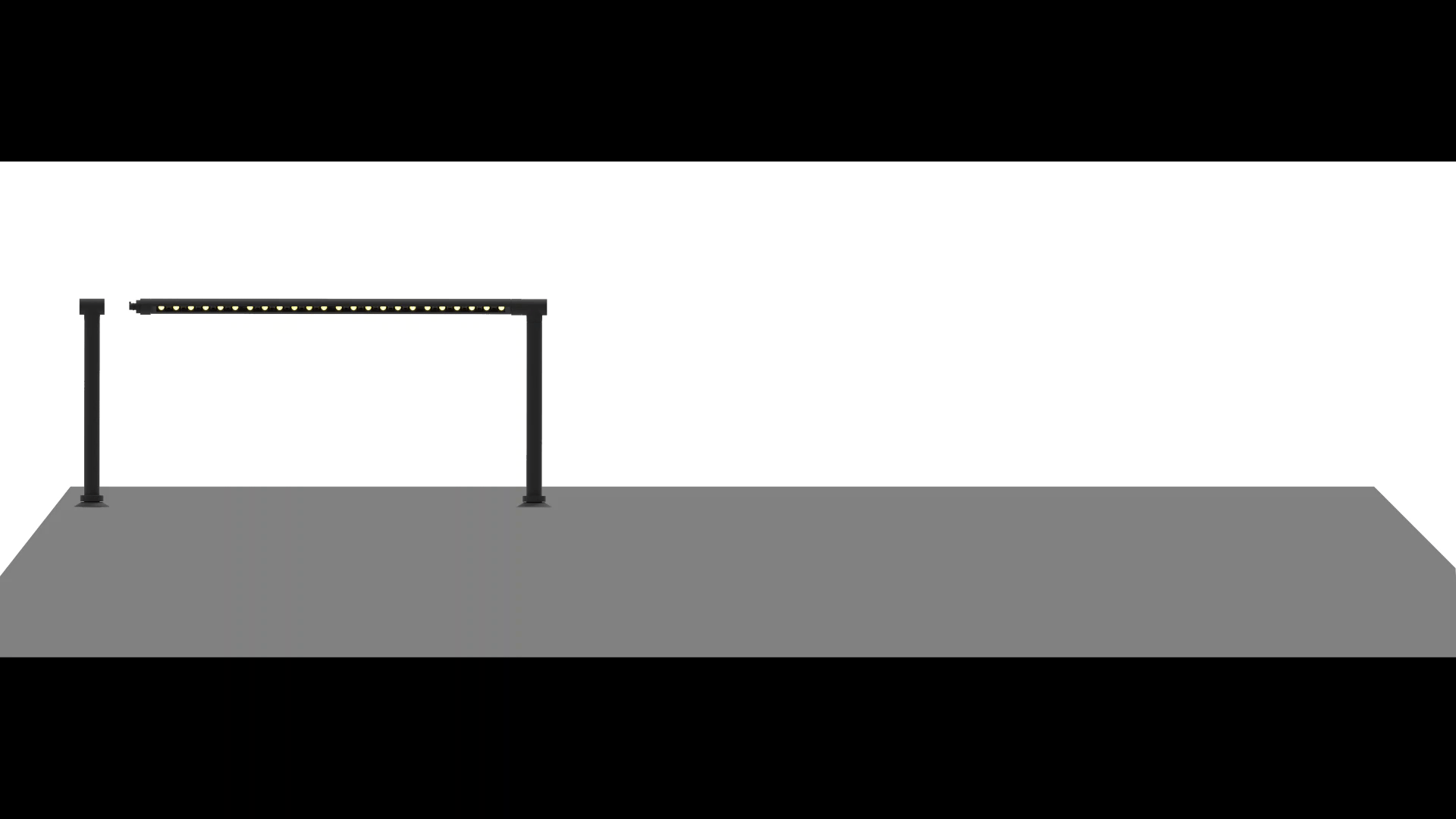

Patented splicing technology, flexible on-site splicing
Min 0.5m and the Max. 2m are supported by a single length, connected by WAC's patented splicing technology and can be spliced with bare hands at the installation site.

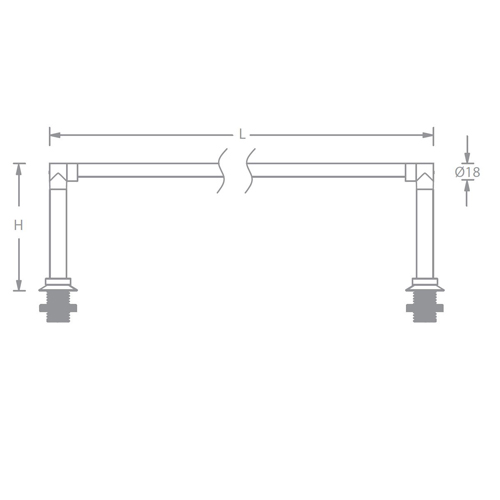

Specifications
| Model | LED | Length (L) | Driver | Beam | CRI | CCT | Finish |
ASLP1 Universal luminaire ASLP2 Connected luminaire | 10 10W/m 20 20W/m | 20 2.029m 16 1.621m 14 1.417m 10 1.007m 05 0.497m | E Constant Current T Constant Voltage | W Wall Washer | 9 90 A 97 | 30 3000K 40 4000K | BK Black |
Example: ASLP1-1005TW930BK
Note: 1) ASLP1 is the whole light with two-terminal poles; SLP2 is the splicing model of a single-ended pole (need to be used with SLP1), and the model No. does not inlcude driver;
2) Product length can be customized on demand (see appendix for details). The minimum unit is about 102mm, and the total length does not exceed 2.2m. For details, please consult WAC.
