OCULARC FOCUS

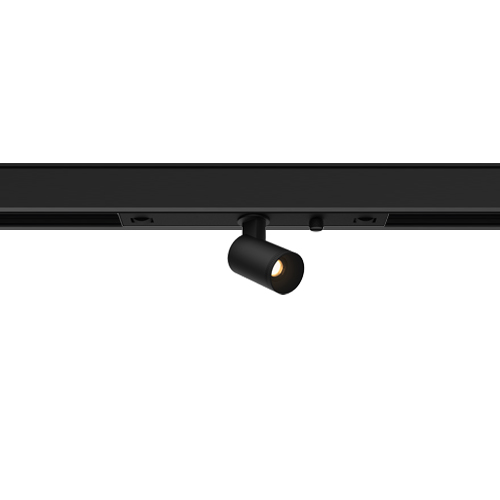

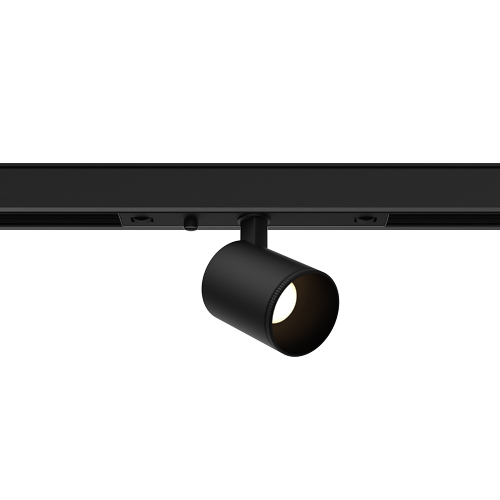

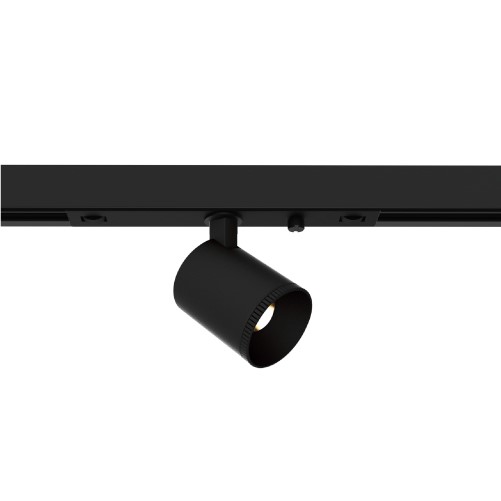

OCULARC FOCUS Track Zoomable Single
ASL45F/ASL46F/AASL47F/ASL48F Mini Zoomable Spotlight
Small scale, serious control. OCULARC FOCUS Track Zoomable Single is designed for the WAC mini track system and integrates SUBROSA® concealed lighting technology with a disciplined shielding angle for advanced glare suppression. With four fixed beam options providing versatile distribution, OCULARC FOCUS Track Zoomable Single supports museum cases and gallery displays where visual comfort and accuracy are essential.
Features

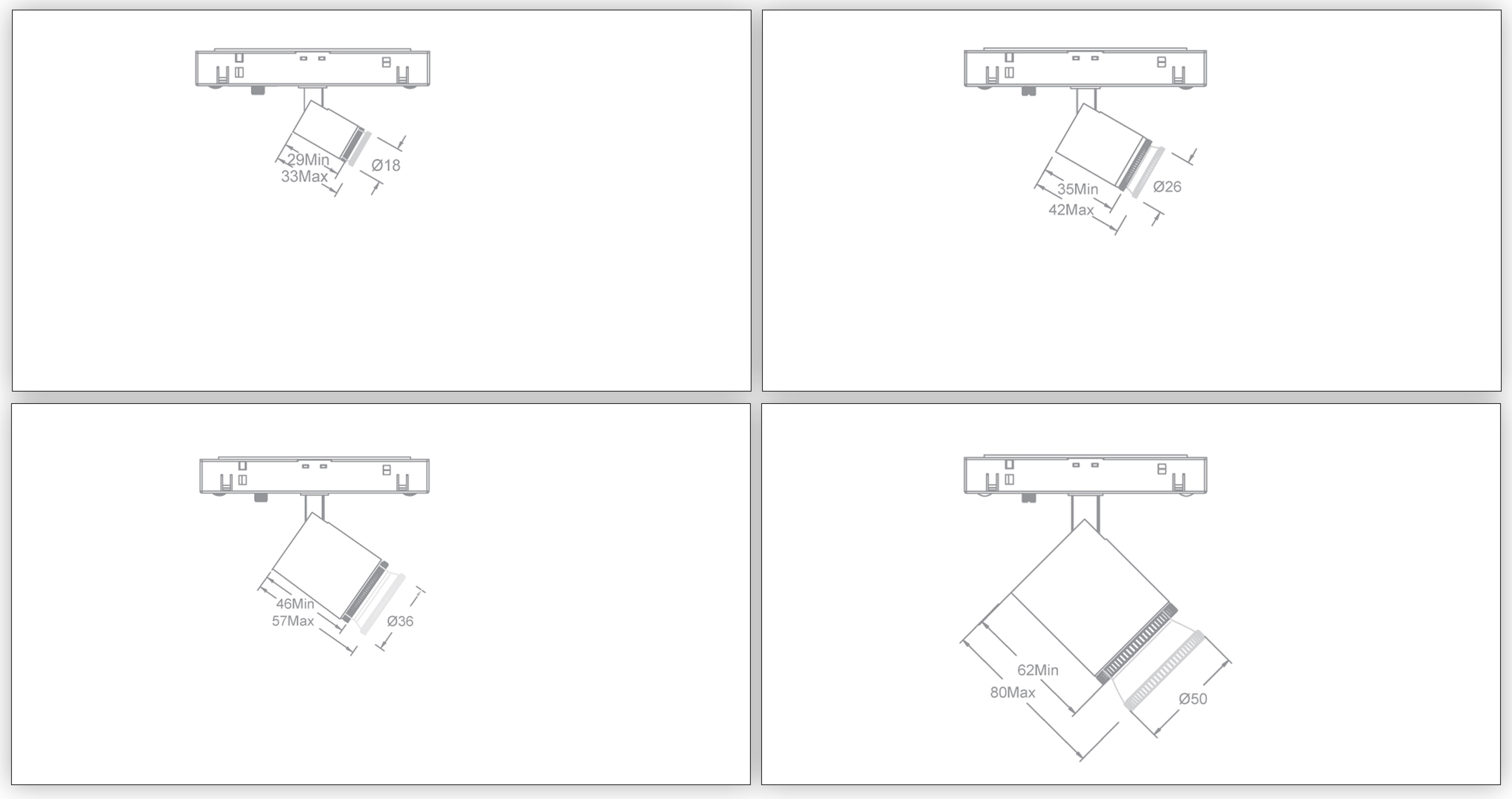

Ocularc Series Showcase Lights, Super Small Size

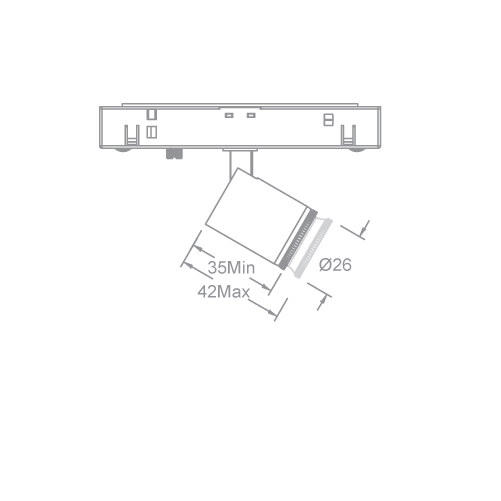

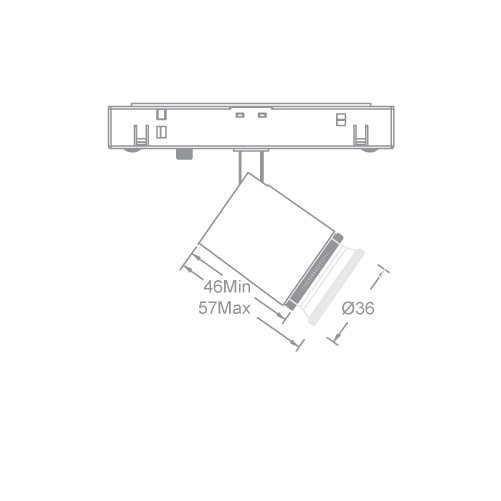

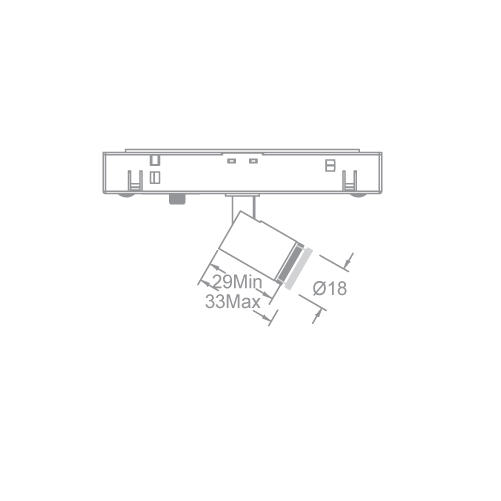

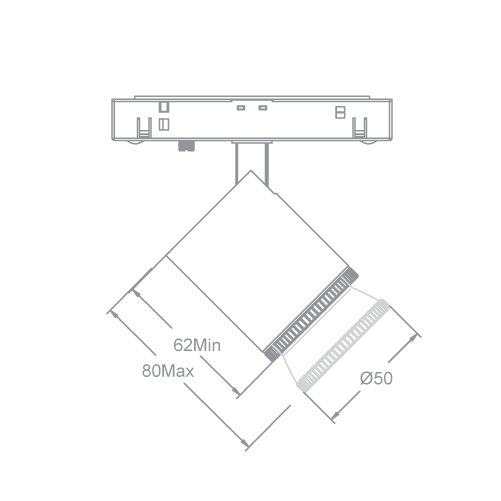

SL45F/SL46F/SL47F/SL48F Size Details, the series offers 18mm, 26mm, 36mm, and 50mm diameter options, while beam angle adjustment can be achieved by rotating the face frame.
Adjustable beam angle
In addition to the loading of WAC's patented optical technology SUBROSA® Hidden Light System, which comes with a 30°anti-glare angle in the Extreme Space, the beam angle is adjustable from 6°-60° at the same time.
Multiple installation options available
The Ocularc series offers three mounting options, track mount, surface mount (ceiling & recessed), and pole mount, to meet the needs of a wide variety of installations.
Specifications
| Model | LED | Dimming | Beam | CRI | CCT | Finish |
ASL45F Ocularc Focus | LD01 LED 1W | O On-boarding E ON-OFF | F 10°-40° | 9 90 A 97 | 30 3000K 40 4000K | BK Black |
| Model | LED | Dimming | Beam | CRI | CCT | Finish |
ASL46F Ocularc Focus | LD03 LED 3W | O On-boarding E ON-OFF | F 6°-40° | 9 90 A 97 | 30 3000K 40 4000K | BK Black |
| Model | LED | Dimming | Beam | CRI | CCT | Finish |
ASL46F Ocularc Focus | LD03 LED 3W | O On-boarding E ON-OFF | F 8°-40° | A 97 | 30 3000K 40 4000K | BK Black |
| Model | LED | Dimming | Beam | CRI | CCT | Finish |
ASL47F Ocularc Focus | LD05 LED 5W | O On-boarding E ON-OFF | F 8°-40° | 9 90 A 97 | 30 3000K 40 4000K | BK Black |
| Model | LED | Dimming | Beam | CRI | CCT | Finish |
ASL48F Ocularc Focus | LD10 LED 10W | O On-boarding E ON-OFF | F 7°-60° | 9 90 A 97 | 30 3000K 40 4000K | BK Black |
Example: ASL47FLD05-OF930BK; Remarks: Support the system dimming, you need to match the remote driver of constant voltage (the dimming method is determined by the constant voltage driver.)
