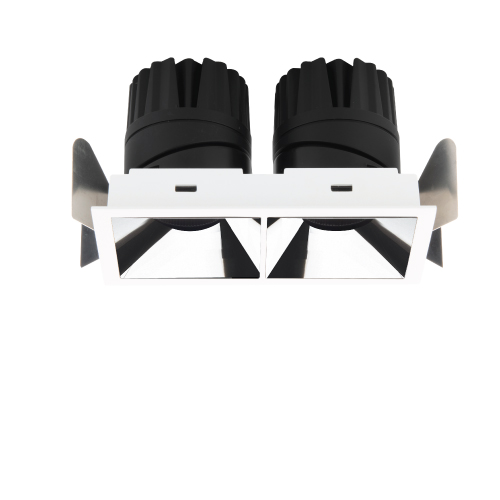

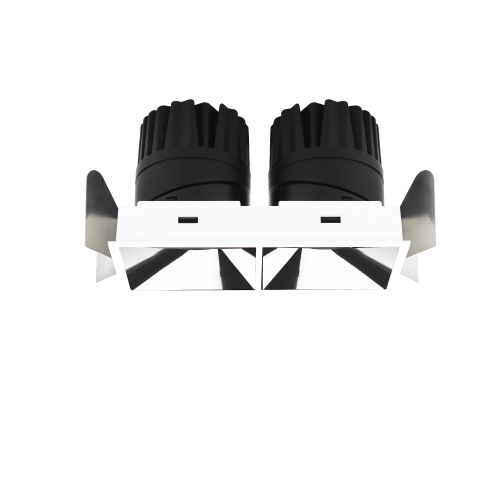

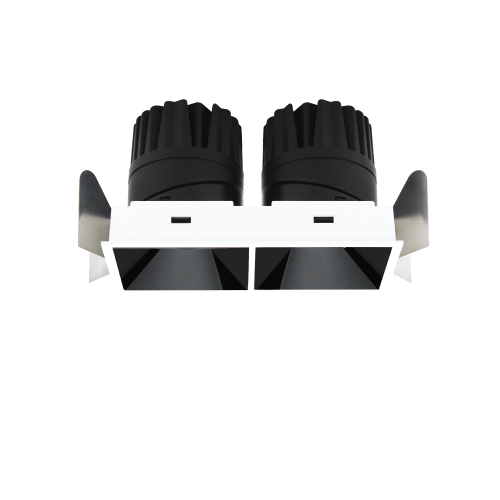

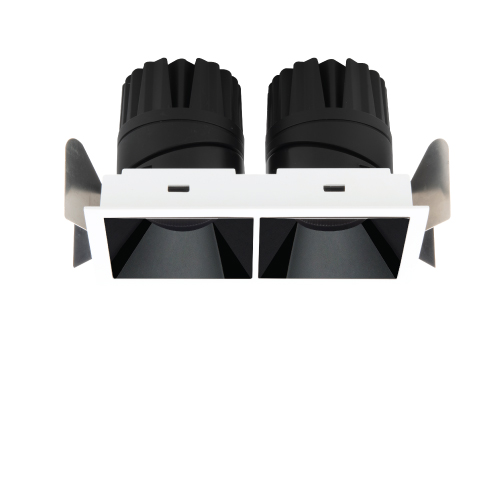

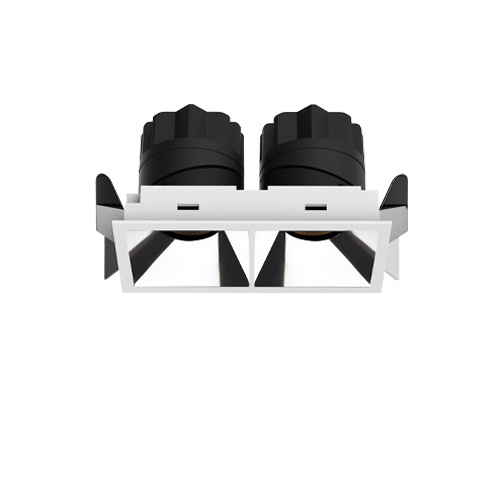

ULTRA Square Fixed

1 / 9

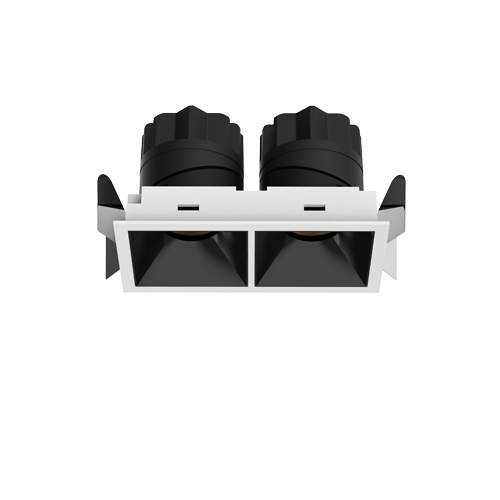

ULTRA

AMTN25/AMTN35/AMTN45 2/3/4"

Engineered for flexibility without compromise, ULTRA Square Fixed is a fixed and adjustable 2-in-1 downlight designed for disciplined architectural integration. Its fully sealed optical construction prevents light leakage throughout tilt, maintaining a clean ceiling plane and precise beam control. Concealed light technology enhances glare suppression while preserving color consistency and visual comfort. A modular system allows on-site replacement of reflector and light engine for long-term adaptability.

Features

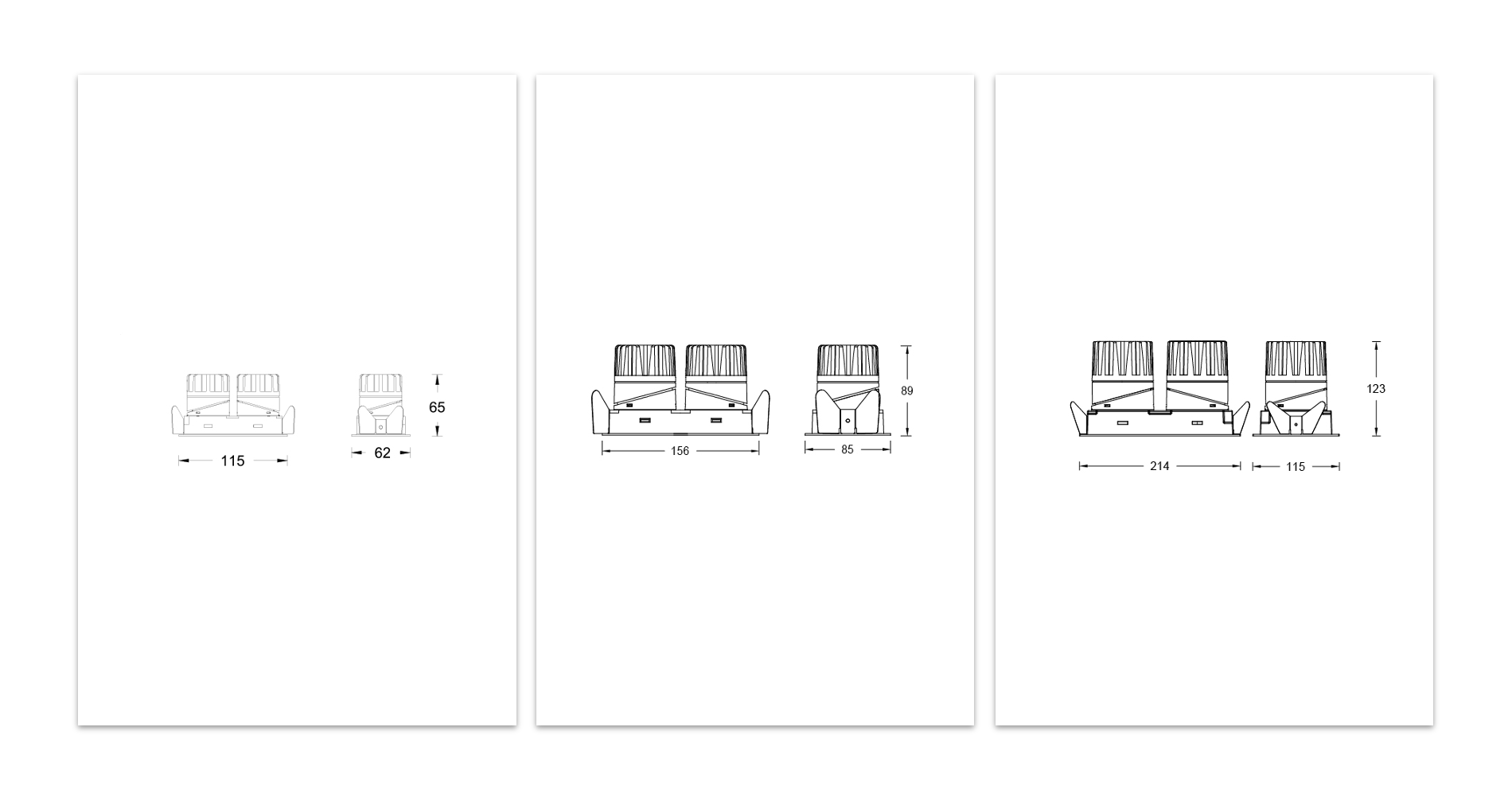

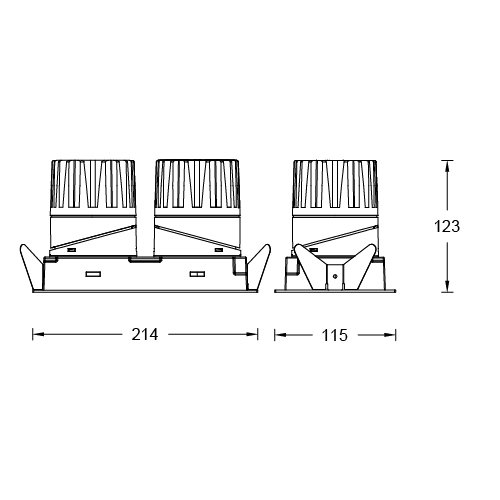

Product Line Drawing

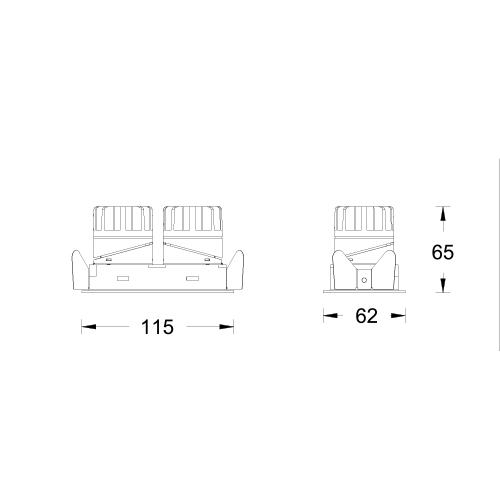

2/3/4 Line Drawing Preview

The stability of fixed downlight and the flexibility of adjustable downlight, 2in1 fixture

ULTRA

No messy fish tail light spot

ULTRA

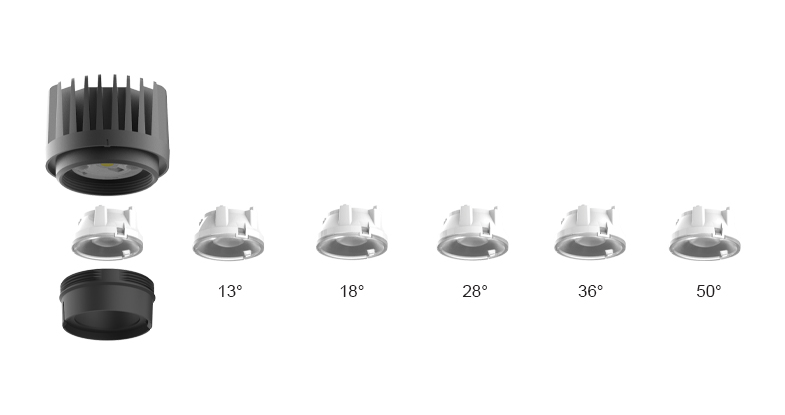

Easy to get multiple light effect, one light for multi-purpose

ULTRA

Specifications

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

AMTN

Multiple Downlight

N series

2 2”

5 Rectangular Trim

205 COB 2*5W

207 COB 2*7W

E On-Off

D 0-10V Dimming

1 15°

2 24°

3 36°

5 50°

27 2700K

30 3000K

35 3500K

40 4000K

50 5000K

B Black

S Specular

WT White

BK Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

AMTN

Multiple Downlight

N series

2 2”

5 Rectangular Trim

207 COB 2*7W

N No Driver

A DALI

1 15°

2 24°

3 36°

5 50°

27 2700K

30 3000K

35 3500K

40 4000K

50 5000K

B Black

S Specular

WT White

BK Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

AMTN

Multiple Downlight

N series

3 3”

5 Rectangular Trim

208 COB 2*8W

E On-Off

D 0-10V Dimming

S 8°

27 2700K

30 3000K

35 3500K

40 4000K

50 5000K

B Black

S Specular

WT White

BK Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

AMTN

Multiple Downlight

N series

3 3”

5 Rectangular Trim

207 COB 2*7W

210 COB 2*10W

213 COB 2*13W

E On-Off

D 0-10V Dimming

N 13°

1 18°

2 28°

3 36°

5 50°

27 2700K

30 3000K

35 3500K

40 4000K

50 5000K

B Black

S Specular

WT White

BK Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

AMTN

Multiple Downlight

N series

3 3”

5 Rectangular Trim

213 COB 2*13W

N No Driver

A DALI

N 13°

1 18°

2 28°

3 36°

5 50°

27 2700K

30 3000K

35 3500K

40 4000K

50 5000K

B Black

S Specular

WT White

BK Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

AMTN

Multiple Downlight

N series

4 4”

5 Rectangular Trim

208 COB 2*8W

E On-Off

D 0-10V Dimming

S 8°

27 2700K

30 3000K

35 3500K

40 4000K

50 5000K

B Black

S Specular

WT White

BK Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

AMTN

Multiple Downlight

N series

4 4”

5 Rectangular Trim

213 COB 2*13W

218 COB 2*18W

225 COB 2*25W

E On-Off

D 0-10V Dimming

N 13°

1 19°

2 28°

3 36°

5 50°

27 2700K

30 3000K

35 3500K

40 4000K

50 5000K

B Black

S Specular

WT White

BK Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

AMTN

Multiple Downlight

N series

4 4”

5 Rectangular Trim

225 COB 2*25W

N No Driver

A DALI

N 13°

1 19°

2 28°

3 36°

5 50°

27 2700K

30 3000K

35 3500K

40 4000K

50 5000K

B Black

S Specular

WT White

BK Black

Example: AMTN25-205E230SWT
