ULTRA ANTI-FOG

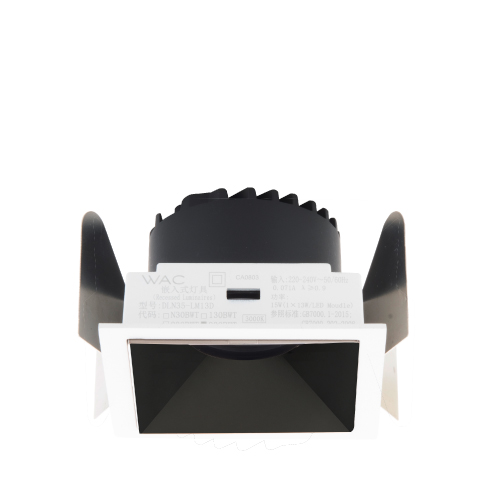

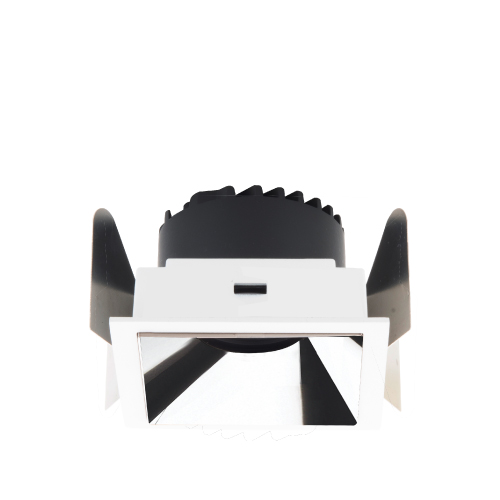

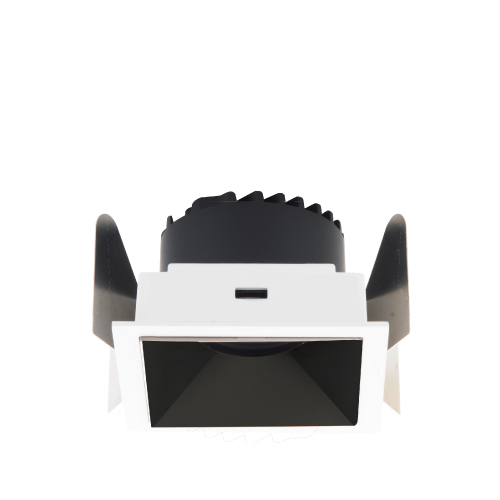

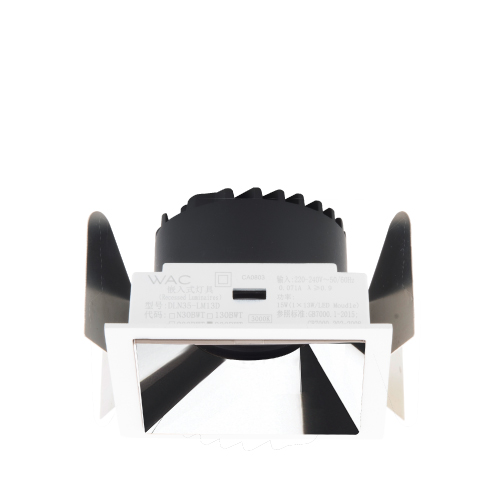

ULTRA ANTI-FOG Square Trim Fixed

ADLN37/ADLN47 Square Trimmed Anti-fog Compact Downlight
Performance adapts to constrained ceiling conditions with ULTRA ANTI-FOG Square Trim Fixed. Designed for shallow plenums and anti-fog environments, its modular construction allows reflector and trim replacement directly on site. Concealed optical technology enhances glare control and color consistency, delivering comfortable, controlled illumination in compact architectural spaces.

Specifications

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLN

Downlight

N series

3  3”

7  Rectangular Trim

LM07  COB 7W

LM10  COB 10W

LM13  COB 13W

E  On-Off

D  0-10V Dimming

N     13°

1     18°

2     28°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT  White

BK   Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLN

Downlight

N series

3  3”

7  Rectangular Trim

LM13  COB 13W

A  DALI

N  No Driver

N     13°

1     18°

2     28°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT  White

BK   Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLN

Downlight

N series

4  4”

7  Rectangular Trim

LM08  COB 8W

E  On-Off

D  0-10V Dimming

S     8°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT  White

BK   Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLN

Downlight

N series

4  4”

7  Rectangular Trim

LM13  COB 13W

LM18  COB 18W

LM25  COB 25W

E  On-Off

D  0-10V Dimming

N     13°

1     18°

2     28°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT  White

BK   Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLN

Downlight

N series

4  4”

7  Rectangular Trim

LM25  COB 25W

A  DALI

N  No Driver

N     13°

1     18°

2     28°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT  White

BK   Black

Example: ADLN37-LM07E230SWT

Note: Factory standard for 8/13/18° is with honeycomb.
