ULTRA ANTI-FOG

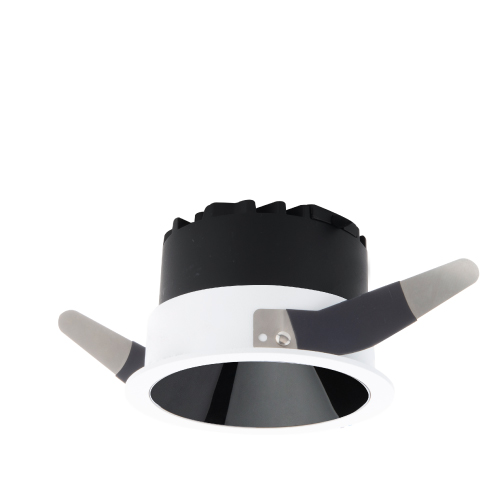

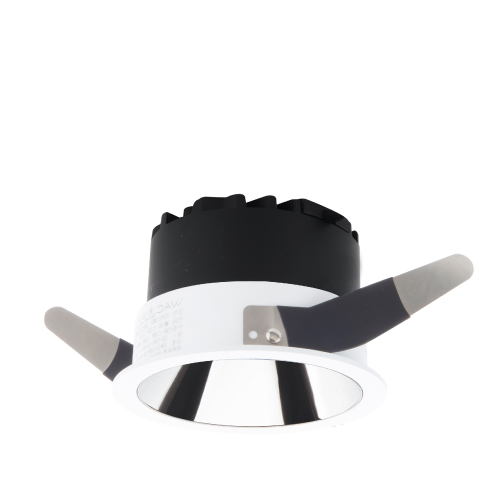

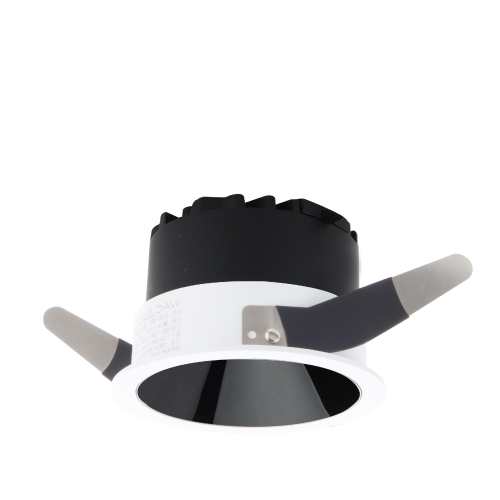

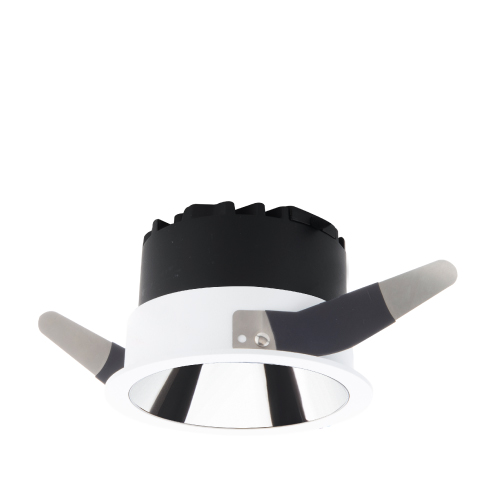

ULTRA ANTI-FOG Round Trim Fixed

ADLN33/ ADLN43 Round Anti-fog Compact Downlight
Designed for shallow plenums and moisture-prone environments, ULTRA ANTI-FOG Round Trim Fixed delivers reliable performance within constrained ceiling spaces. Its modular platform allows on-site replacement of reflectors or trim components, enabling flexible output configurations. Concealed optical technology enhances glare suppression and maintains consistent color quality, providing comfortable illumination in hospitality and commercial interiors.

Specifications


Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLN

Downlight

N series

3  3”

3  Round Trim

LM07  COB 7W

LM10  COB 10W

LM13  COB 13W

E  On-Off

D  0-10 Dimming

N     13°

1     18°

2     28°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50    5000K

B  Black

S  Specular


WT  White

BK   Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLN

Downlight

N series

3  3”

3  Round Trim

LM13  COB 13W

A  DALI

N  No Driver

N     13°

1     18°

2     28°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50    5000K

B  Black

S  Specular

WT  White

BK    Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLN

Downlight

N series

4  4”

3  Round Trim

LM08  COB 8W

E  On-Off

D  0-10 Dimming

S    8°

27  2700K

30  3000K

35  3500K

40  4000K

50    5000K

B  Black

S  Specular


WT  White

BK   Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

DLN

Downlight

N series

4  4”

3  Round Trim

LM13  COB 13W

LM18  COB 18W

LM25  COB 25W

E  On-Off

D  0-10 Dimming

N     13°

1     18°

2     28°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50    5000K

B  Black

S  Specular


WT  White

BK   Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLN

Downlight

N series

4  4”

3  Round Trim

LM25  COB 25W

A  DALI

N  No Driver

N     13°

1     18°

2     28°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50    5000K

B  Black

S  Specular


WT  White

BK   Black

Example: ADLN33-LM07E230SWT


Note: Factory standard for 8/13/18° is with honeycomb.
