3-Circuit Track System

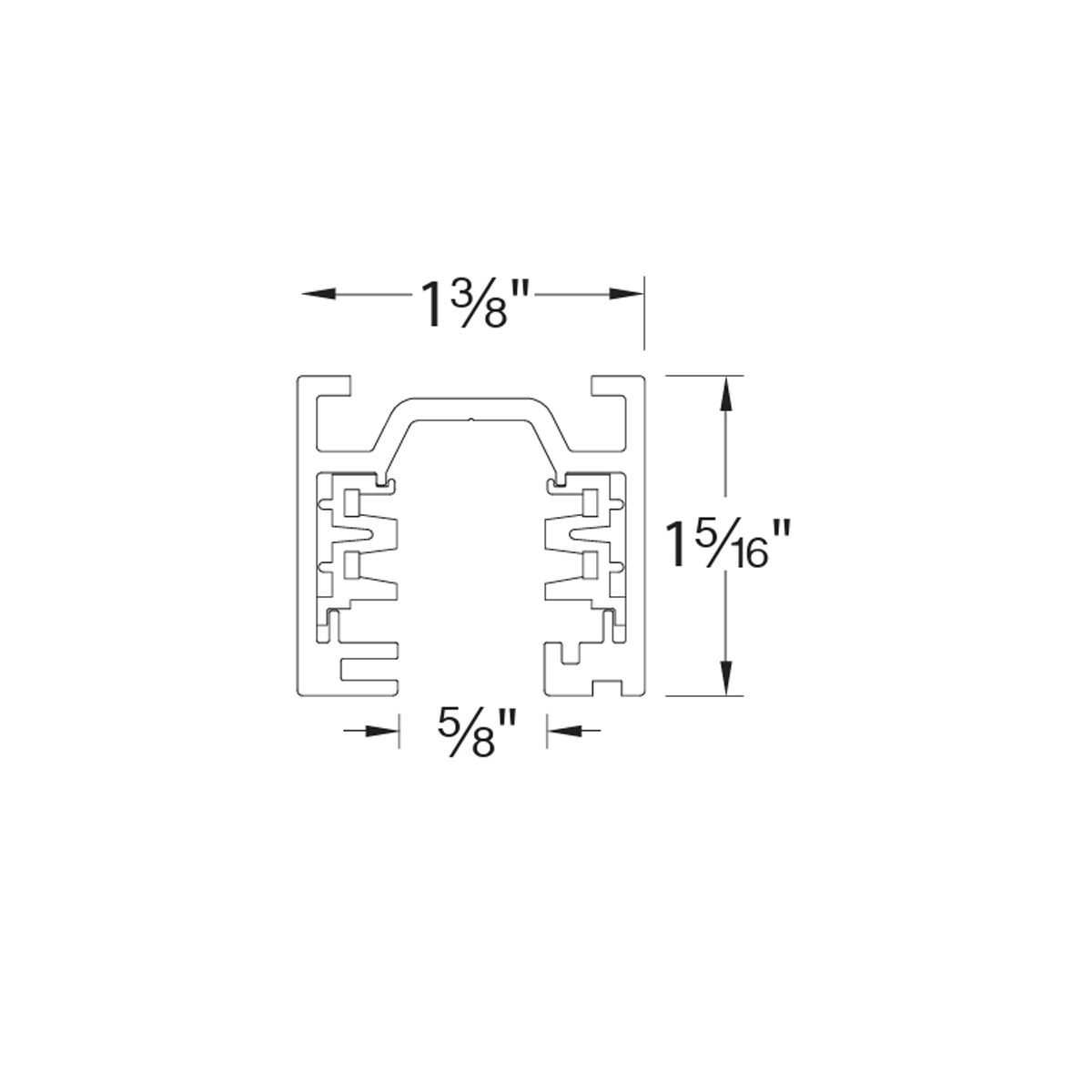

3-CIRCUIT TRACK Surface
AWT1M/AWT2M/AWT3M W Series /Surface-mounted
Flexibility begins with infrastructure. 3-CIRCUIT TRACK Surface is fabricated from high-purity extruded aluminum for structural strength and long-term performance. The integrated circuit selector enables quick configuration across multiple circuits, while a wide range of compatible accessories supports diverse installation strategies. Suitable for various ceiling conditions, 3-CIRCUIT TRACK Surface provides durable, adaptable track integration for architectural lighting systems.
Features
List of accessories, please refer to the technical specifications for details
<p>A wide range of accessories and functions for many types of ceiling installation.</p>
<table>
<tbody>
<tr>
<td>Model</td>
<td>Description</td>
<td>Function</td>
</tr>
<tr>
<td>WEC</td>
<td>End cap</td>
<td>To cover the end of a track run.</td>
</tr>
<tr>
<td>WEDL</td>
<td>Live end connector left</td>
<td>To start a run.</td>
</tr>
<tr>
<td>WEDR</td>
<td>Live end connector right</td>
<td>To start a run.</td>
</tr>
<tr>
<td>WPC</td>
<td>"I" power connector</td>
<td>Straight line connector used to join two sections of track with<br />
electrical continuity.</td>
</tr>
<tr>
<td>WLLC</td>
<td>"L" connector left</td>
<td> To connect two track sections at 90° for a left turn. Power feedable.</td>
</tr>
<tr>
<td>WLTC</td>
<td>"T" connector left</td>
<td>To join three track sections all at 90°. Power feedable.</td>
</tr>
<tr>
<td>WRLC</td>
<td>"L" connector right</td>
<td>To connect two track sections at 90º angle for a right turn.Power feedable.</td>
</tr>
<tr>
<td>WRTC</td>
<td>"T" connector right</td>
<td>To join three track sections all at 90º. Power feedable.</td>
</tr>
<tr>
<td>WFC</td>
<td>Flexible connector</td>
<td>Connects two track sections at variable angles from 60º to 180º. Used as a<br />
transition from wall-to-wall, wall-to-ceiling,or ceiling-to-ceiling.Power feedable.</td>
</tr>
<tr>
<td>WIC </td>
<td>"I" connector</td>
<td>Power entry point at the connection of two tracks. To connect two track sections<br />
end-to-end to keep a straight line.Power feedable.</td>
</tr>
<tr>
<td>WXC </td>
<td>"X" connector</td>
<td>To connect four track sections into a cross configuration. Power feedable.</td>
</tr>
<tr>
<td>WMP</td>
<td>Ceiling plate</td>
<td>Three-circuit lamps can be directly connected to the ceiling plate<br />
to replace the role of the three-circuit track.</td>
</tr>
</tbody>
</table>
Specifications
| Model | Finish | Weight | Length (mm) |
AWT1M AWT2M AWT3M | BK, PT, WT BK, PT, WT BK, PT, WT | 1.10kg 2.20kg 3.30kg | 1000mm 2000mm 3000mm |
Example: AWT1M-WTC
