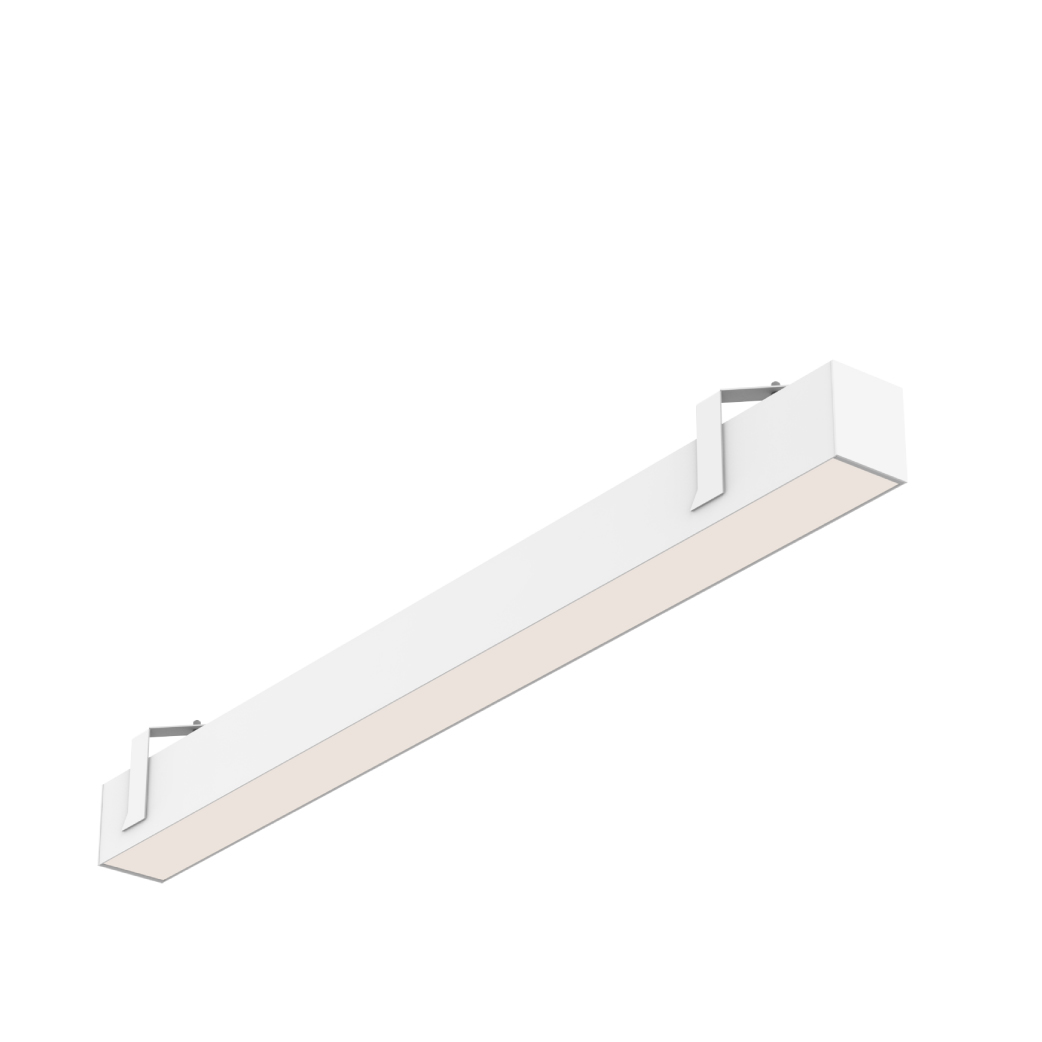

VOLO Rimless Mounted 70

1 / 2

VOLO

OR1L

VOLO Rimless Mounted 70 brings refined linear performance to commercial interiors. Its aluminum profile housing ensures efficient thermal management while delivering energy-efficient, glare-controlled illumination. Customizable lengths and seamless end-to-end connectivity support scalable rimless mounted installations.

Features

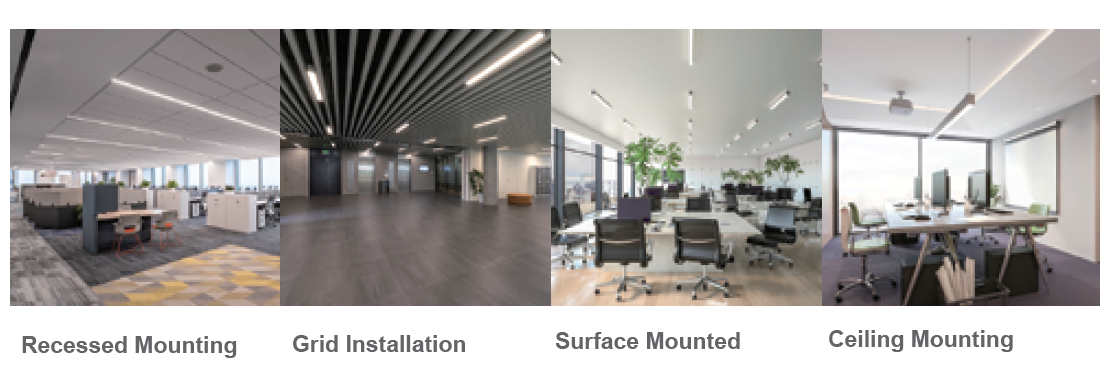

Various Mounting Options Available for VOLO Series

Recessed / Grille Mount / Surface Mount / Suspended Mount

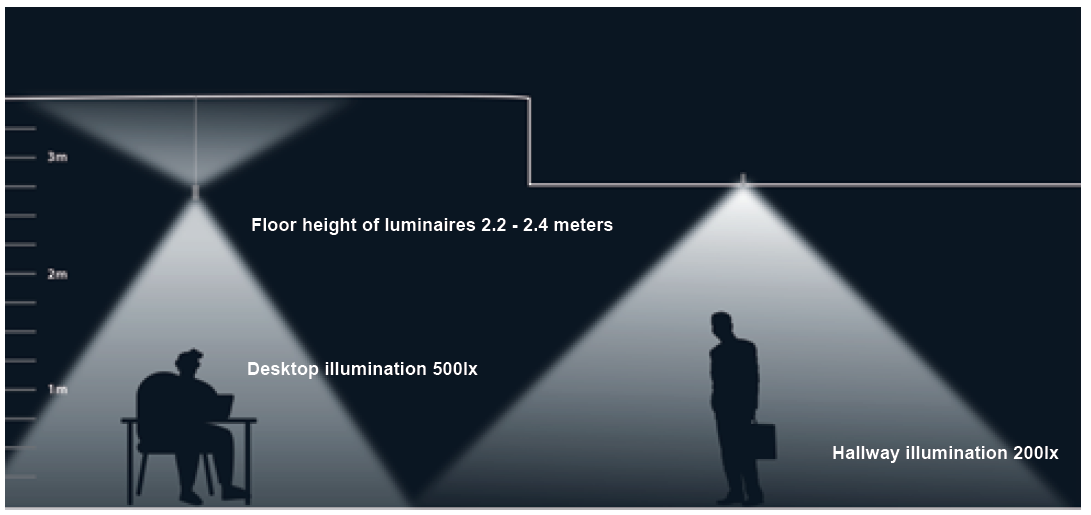

Recommended Luminaire Mounting Height

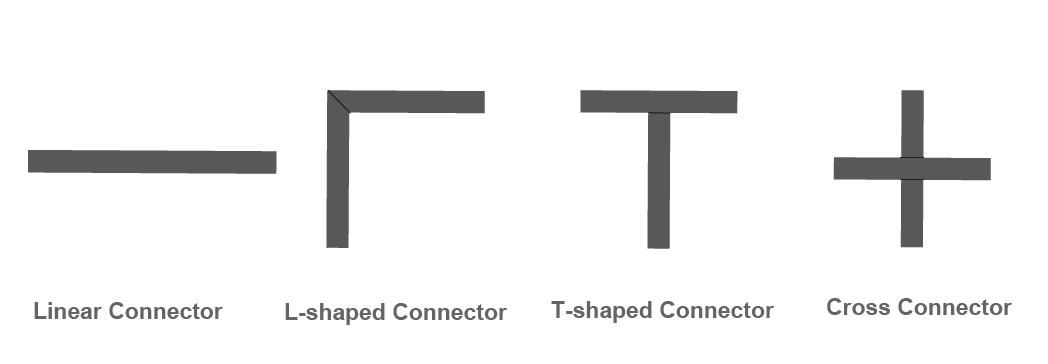

Wide Range of Accessory Options for Different Applications

The patented track connector ensures that the luminaire can be individually adapted to the needs of different settings.

Specifications

Model

Length（mm）

Power（W）

Driver

Beam

CCT

Finish

OR1L

12 1200

40 40W

E ON-OFF

D 0-10V Dimming

A DALI

P Matte

Y Prism

30 3000K

35 3500K

40 4000K

50 5000K

WT White

BK Black

Example: OR1L-1240E-P30WT
