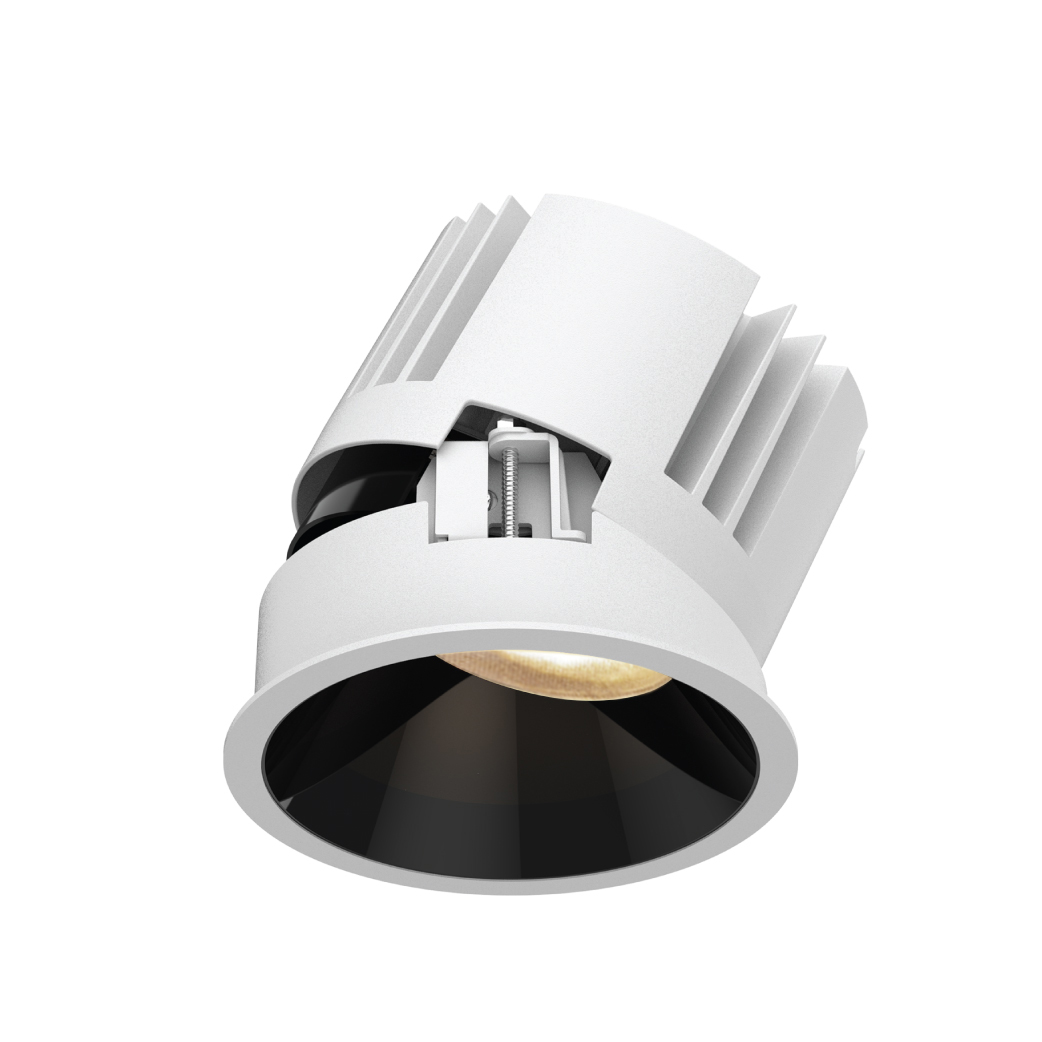

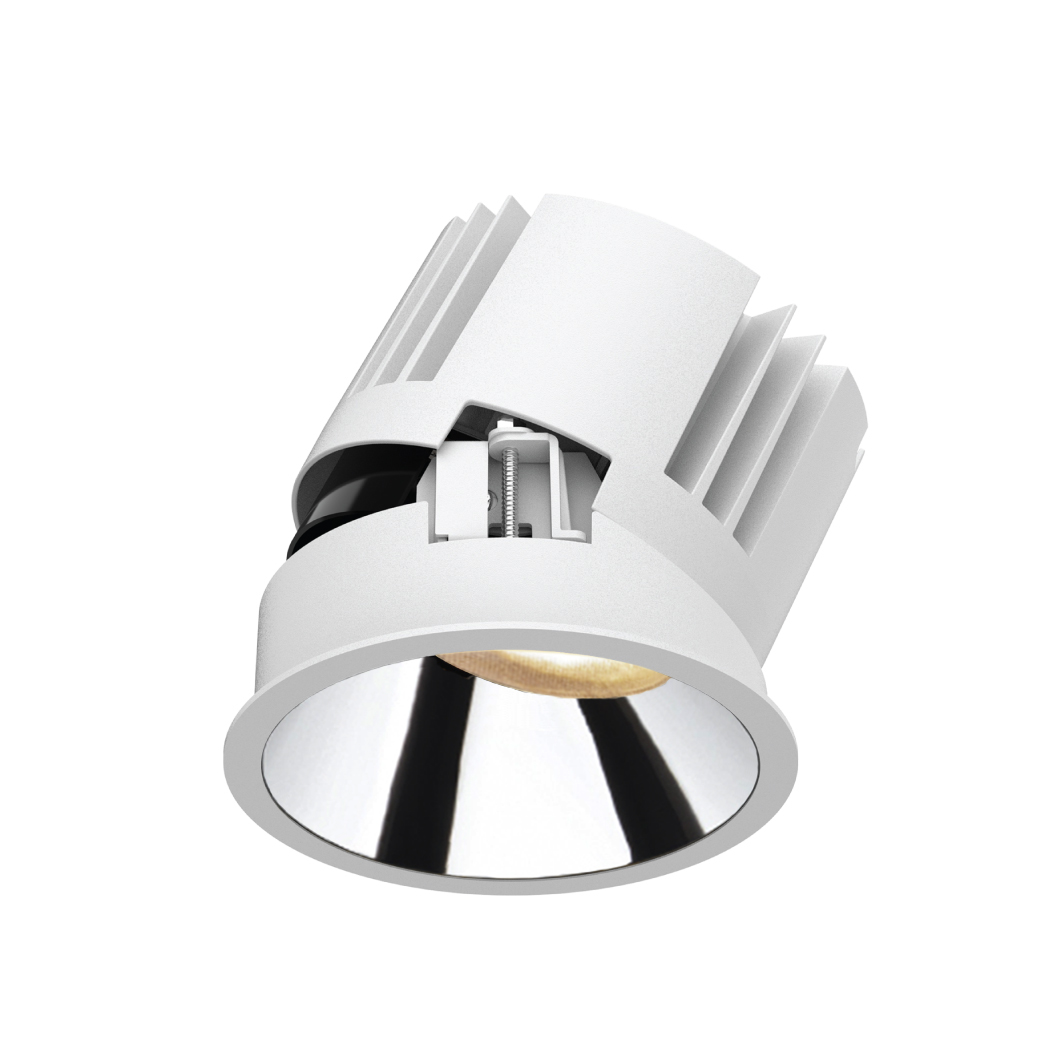

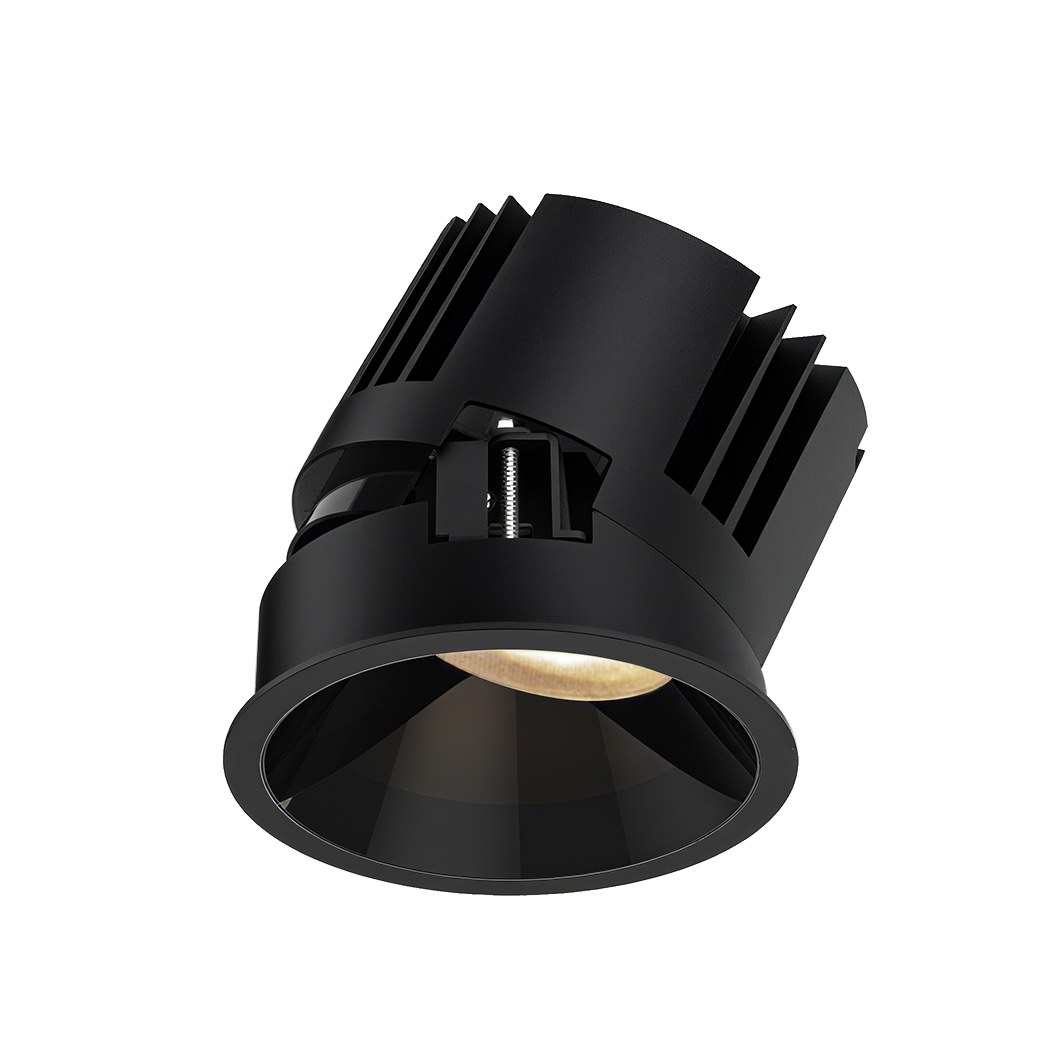

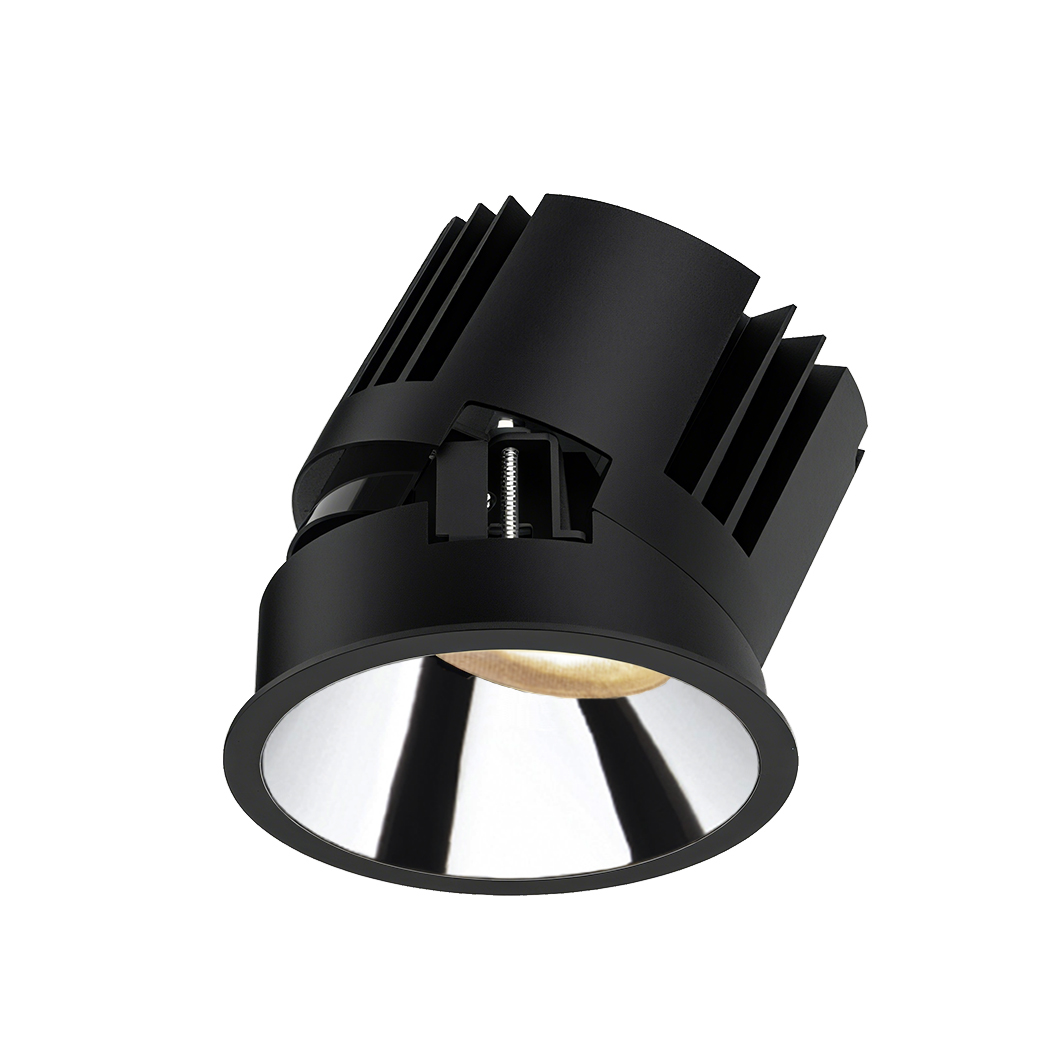

VOLTA II Round Adjustable 5/6

1 / 4

VOLTA II

ADDT51/ADDT61 5/6"

VOLTA II Round Adjustable 5/6 features a streamlined narrow-trim profile that integrates seamlessly into hospitality and commercial ceilings. Integrated adjustable aiming enhances beam placement without compromising visual comfort. A precision lens and black reflector system deliver high luminous efficacy with outstanding glare control. The sealed light engine minimizes environmental impact on performance while supporting long-term reliability. Removable and replaceable optical components provide exceptional on-site flexibility and serviceability.

Features

Clean, Soft Beam (Right: VOLTA)

Actual lighting demonstration shows a clean and uniform beam with no stray light.

Adjustment with No Light Leakage (Right: VOLTA)

It combines light output and anti-glare design, with no stray light throughout the entire angle adjustment process.

Multiple Beam Angles Available

The series offers four optical configurations — 15°, 24°, 36°, and 55° — to meet diverse lighting requirements.

Specifications

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADDT

5 5”

1 Round Trim

LM18 COB 18W

LM25 COB 25W

E On-Off

D 0-10V Dimming

1 15°

2 24°

3 36°

5 50°

27 2700K

30 3000K

35 3500K

40 4000K

50 5000K

B Black

S Specular

WT White

BK Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADDT

5 5”

1 Round Trim

LM25 COB 18W

A DALI

N No Driver

1 15°

2 24°

3 36°

5 50°

27 2700K

30 3000K

35 3500K

40 4000K

50 5000K

B Black

S Specular

WT White

BK Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADDT

6 6”

1 Round Trim

LM32 COB 32W

LM43 COB 43W

E On-Off

D 0-10V Dimming

1 15°

2 24°

3 36°

5 50°

27 2700K

30 3000K

35 3500K

40 4000K

50 5000K

B Black

S Specular

WT White

BK Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADDT

6 6”

1 Round Trim

LM43 COB 43W

A DALI

N No Driver

1 15°

2 24°

3 36°

5 50°

27 2700K

30 3000K

35 3500K

40 4000K

50 5000K

B Black

S Specular

WT White

BK Black

示例：ADDT61-LM43E230SWT
