3-Circuit Track System

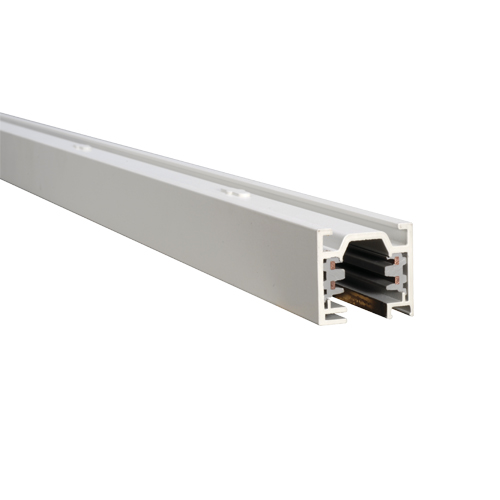

3-CIRCUIT TRACK Surface

AWT1M/AWT2M/AWT3M W Series /Surface-mounted
Flexibility begins with infrastructure. 3-CIRCUIT TRACK Surface is fabricated from high-purity extruded aluminum for structural strength and long-term performance. The integrated circuit selector enables quick configuration across multiple circuits, while a wide range of compatible accessories supports diverse installation strategies. Suitable for various ceiling conditions, 3-CIRCUIT TRACK Surface provides durable, adaptable track integration for architectural lighting systems.

Features

List of accessories, please refer to the technical specifications for details

List of accessories, please refer to the technical specifications for details

<p>A wide range of accessories and functions for many types of ceiling installation.</p> <table> <tbody> <tr> <td>Model</td> <td>Description</td> <td>Function</td> </tr> <tr> <td>WEC</td> <td>End cap</td> <td>To cover the end of a track run.</td> </tr> <tr> <td>WEDL</td> <td>Live end connector left</td> <td>To start a run.</td> </tr> <tr> <td>WEDR</td> <td>Live end connector right</td> <td>To start a run.</td> </tr> <tr> <td>WPC</td> <td>"I" power connector</td> <td>Straight line connector used to join two sections of track with<br /> electrical continuity.</td> </tr> <tr> <td>WLLC</td> <td>"L" connector left</td> <td> To connect two track sections at 90° for a left turn. Power feedable.</td> </tr> <tr> <td>WLTC</td> <td>"T" connector left</td> <td>To join three track sections all at 90°. Power feedable.</td> </tr> <tr> <td>WRLC</td> <td>"L" connector right</td> <td>To connect two track sections at 90º angle for a right turn.Power feedable.</td> </tr> <tr> <td>WRTC</td> <td>"T" connector right</td> <td>To join three track sections all at 90º. Power feedable.</td> </tr> <tr> <td>WFC</td> <td>Flexible connector</td> <td>Connects two track sections at variable angles from 60º to 180º. Used as a<br /> transition from wall-to-wall, wall-to-ceiling,or ceiling-to-ceiling.Power feedable.</td> </tr> <tr> <td>WIC </td> <td>"I" connector</td> <td>Power entry point at the connection of two tracks. To connect two track sections<br /> end-to-end to keep a straight line.Power feedable.</td> </tr> <tr> <td>WXC </td> <td>"X" connector</td> <td>To connect four track sections into a cross configuration. Power feedable.</td> </tr> <tr> <td>WMP</td> <td>Ceiling plate</td> <td>Three-circuit lamps can be directly connected to the ceiling plate<br /> to replace the role of the three-circuit track.</td> </tr> </tbody> </table>

Specifications

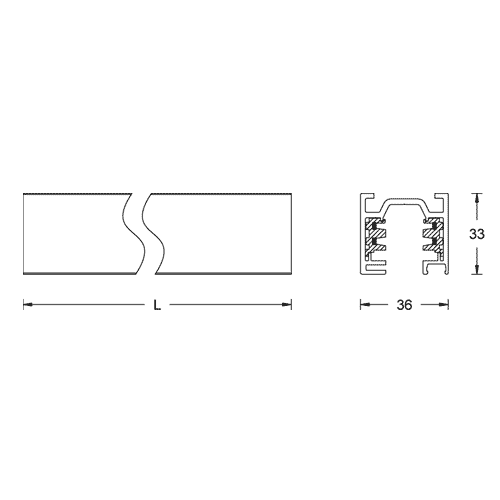

ModelFinishWeightLength (mm)

AWT1M

AWT2M

AWT3M

BK, PT, WT

BK, PT, WT

BK, PT, WT

1.10kg

2.20kg

3.30kg

1000mm

2000mm

3000mm

Example:  AWT1M-WTC
