Round 2/3/4/5/6

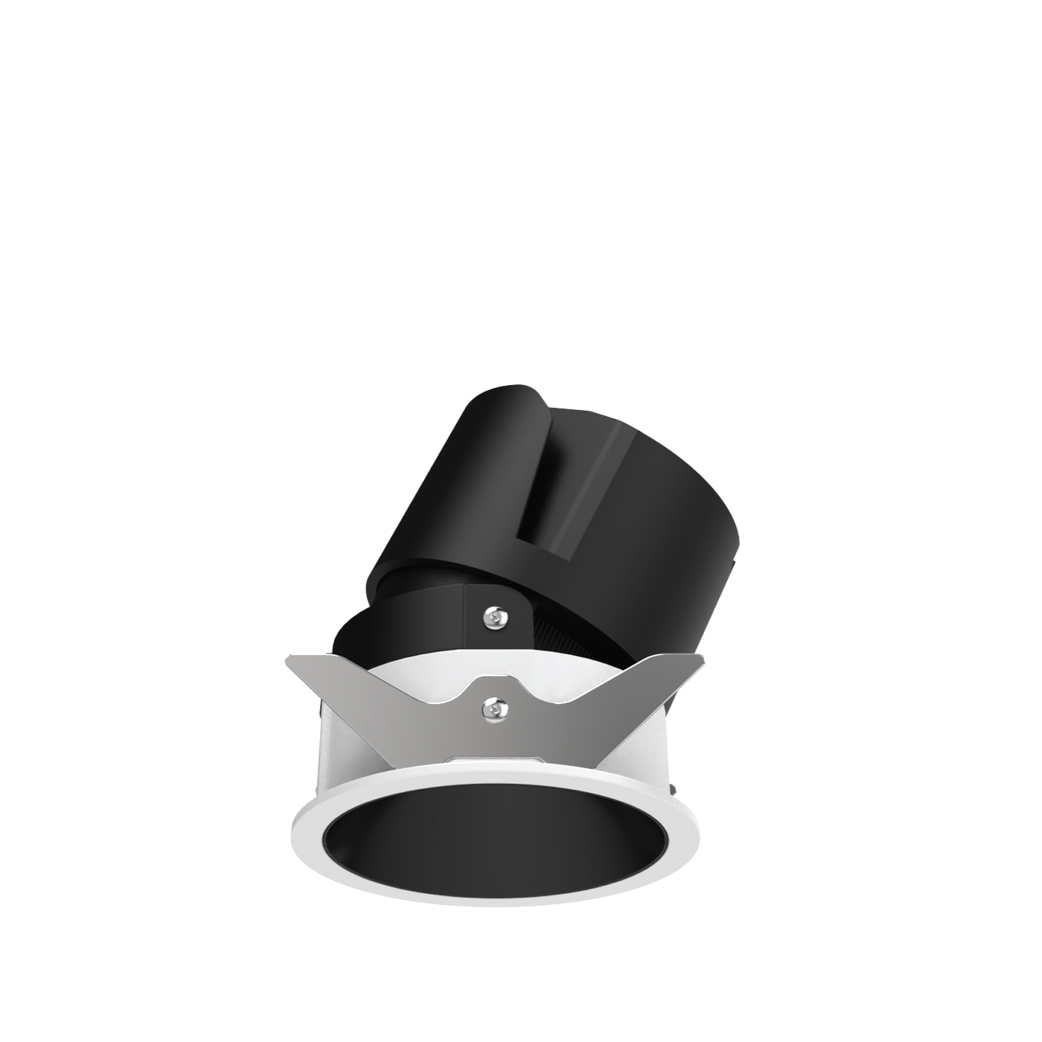

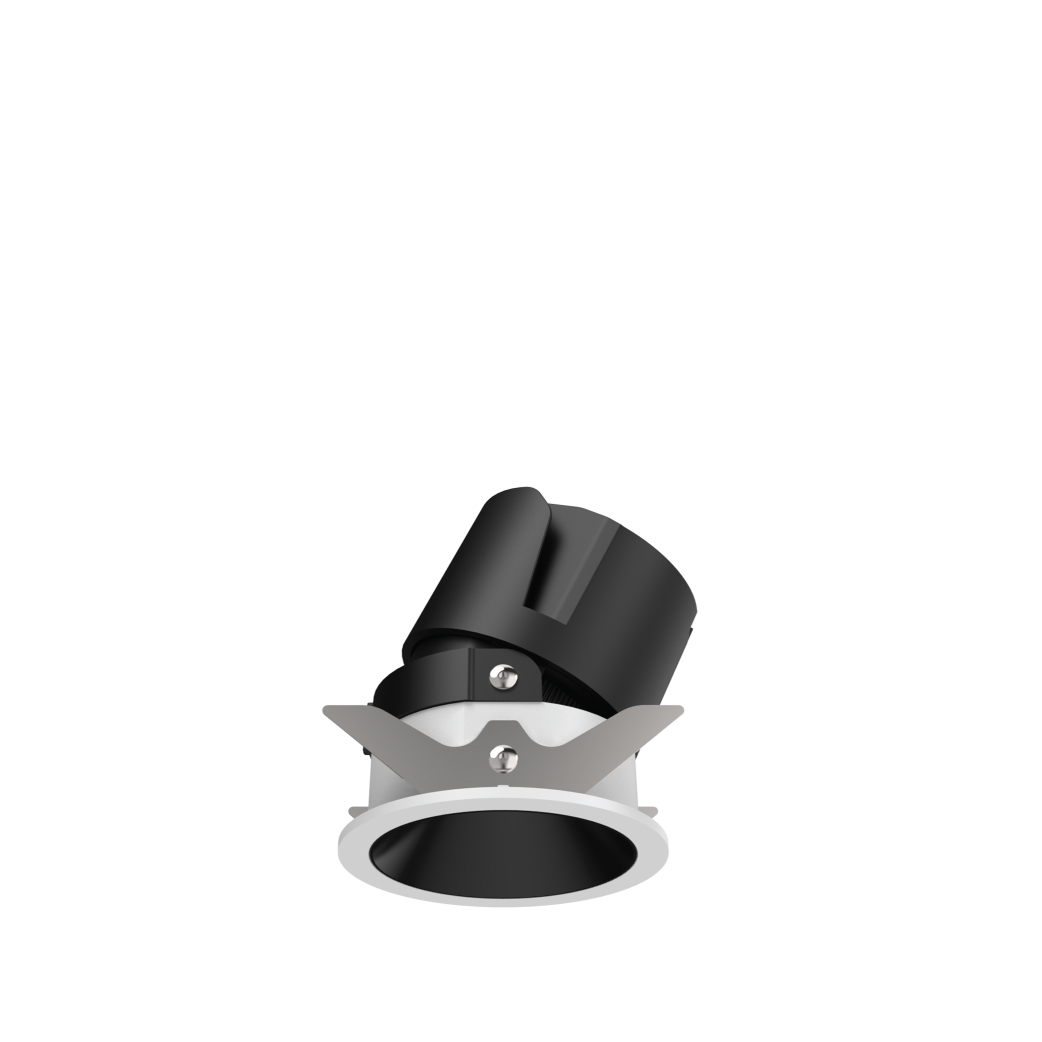

AETHER Round

KDA21/KDA31/KDA41/KDA51/KDA61
Architectural restraint defines AETHER Round. Its narrow-side recessed angled form integrates seamlessly into the ceiling plane, delivering disciplined glare control and strong color consistency for hospitality and club environments.

Specifications

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

KDA

Downlight A series

2 2

1 Round Trim

LM04  COB 4W

LM07  COB 7W

E  On-Off

D  0-10V Dimming

1    15°

2    24°

3    36°

5    50°



27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular



WT  White

BK  Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

KDA

Downlight A series

3 3

1 Round Trim

LM07  COB 7W

LM10  COB 10W

LM13  COB 13W

E  On-Off

D  0-10V Dimming

1    15°

2    24°

3    36°

5    50°



27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

W  White

S  Specular

T  Black Step

H  White Step



WT  White

BK  Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

KDA

Downlight A series

4 4

1 Round Trim

LM18  COB 18W

LM25  COB 25W

E  On-Off

D  0-10V Dimming

1    15°

2    24°

3    36°

5    50°



27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT  White

BK  Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

KDA

Downlight A series

5 5

1 Round Trim

LM25  COB 25W

LM32  COB 32W

E  On-Off

D  0-10V Dimming

1    15°

2    24°

3    36°

5    50°



27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT  White

BK  Black

Example: KDA31-LM07E-130SWT, refer to the product specification.
