LIGNE PRO

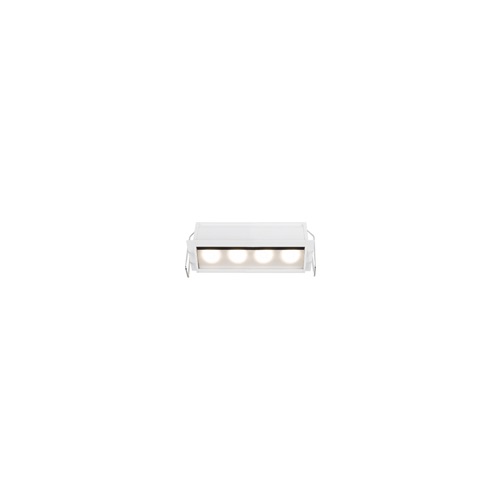

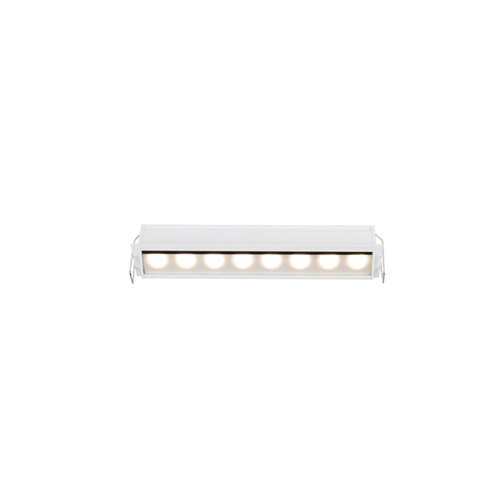

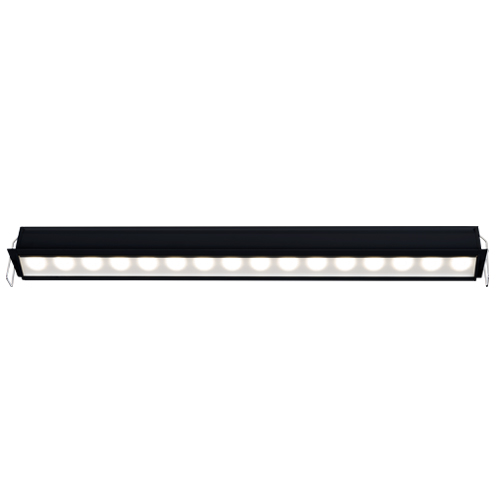

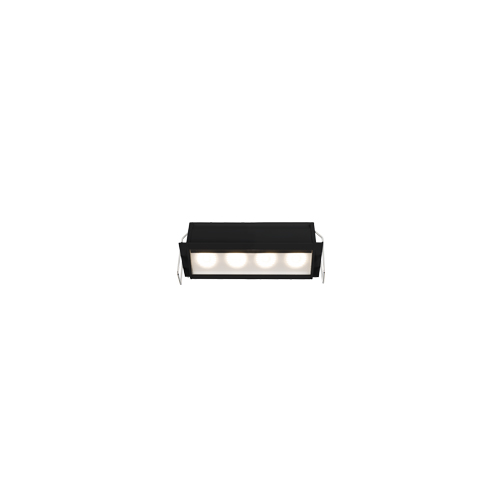

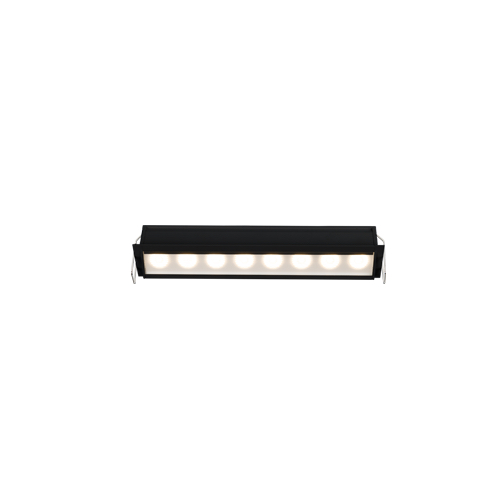

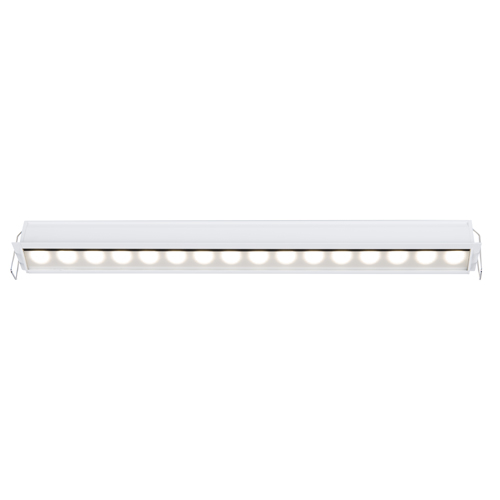

LIGNE PRO Recessed Wall-Washer
ALWAR5 Recessed Linear Wall Washer Light
Precision-built for vertical illumination, LIGNE PRO Recessed Wall-Washer employs an asymmetric distribution to deliver smooth, uniform wall coverage from a recessed linear profile. Engineered for consistent grazing and even background lighting, it enhances surface texture without visible hot spots or shadow breaks. Offered in multiple lengths and output configurations, and available in black or white finishes, LIGNE PRO integrates cleanly into commercial public spaces and display environments. A specification-grade linear solution where vertical planes become part of the architectural narrative.
Features
LIGNE Pro wall wash light distribution actual simulation effect
Specifications
Model | LED Power | Driver | CCT | Beam | Reflector | Finish |
ALWAR5 Linear Wallwasher A series | LD08 8W | E On-Off D 0-10V Dimming
| 27 2700K 30 3000K 40 4000K | W Wall Wash
| B Black W White | BK Black WT White |
Model | LED Power | Driver | CCT | Beam | Reflector | Finish |
ALWAR5 Linear Wallwasher A series | LD16 16W | E On-Off D 0-10V Dimming
| 27 2700K 30 3000K 40 4000K | W Wall Wash
| B Black W White | BK Black WT White |
Model | LED Power | Driver | CCT | Beam | Reflector | Finish |
ALWAR5 Linear Wallwasher A series | LD32 32W | E On-Off D 0-10V Dimming
| 27 2700K 30 3000K 40 4000K | W Wall Wash
| B Black W White | BK Black WT White |
Example: ALWAR5-LD32E27WBBK; ALWAR5-LD32E27WWWT
